Introduction

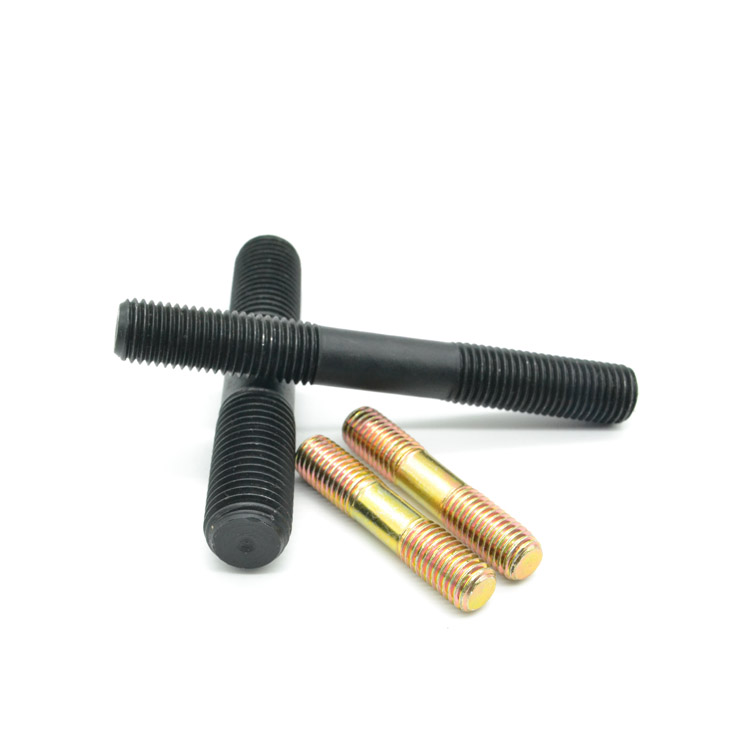

Threaded bar, also known as studding, is a fundamental fastener in numerous industrial applications. Positioned within the broader family of fasteners – including bolts, screws, and rods – threaded bar distinguishes itself through its continuous thread length, enabling its use in applications requiring a long, consistently threaded component. Its primary function is to connect, secure, and support various structural and mechanical elements. The core performance characteristics of threaded bar are tensile strength, shear strength, fatigue resistance, and corrosion resistance, all of which are directly tied to material composition, manufacturing processes, and surface treatments. A crucial challenge facing industry professionals is selecting the appropriate grade and material to withstand specific load conditions, environmental factors, and potential failure mechanisms, which necessitates a deep understanding of metallurgical properties and standardized testing procedures.
Material Science & Manufacturing
Threaded bars are commonly manufactured from carbon steel (low, medium, and high carbon), alloy steels (such as chromium-molybdenum steel - 4140, 4340), stainless steel (304, 316, Duplex), and occasionally specialized materials like Inconel or titanium alloys for extreme environments. Carbon steel offers a cost-effective solution for general applications, but is susceptible to corrosion. Alloy steels provide enhanced strength, toughness, and hardenability. Stainless steel is prized for its corrosion resistance, albeit at a higher cost. Material selection dictates mechanical properties; higher carbon content generally increases tensile strength but reduces ductility. Manufacturing typically involves cold heading (for smaller diameters) followed by rolling, or direct machining from bar stock. Hot rolling is employed for larger diameters. Critical parameters during manufacturing include thread pitch accuracy, surface finish (Ra value), and dimensional tolerances. Thread rolling, a cold-forming process, is preferred for its superior strength compared to machining as it preserves the grain structure of the material. Heat treatment, such as quenching and tempering, is crucial for achieving desired hardness and tensile strength. Post-processing includes surface treatments like galvanizing, zinc plating, or PTFE coating for corrosion protection and reduced friction. Chemical composition is verified via spectroscopic analysis, while mechanical properties are assessed through tensile testing, yield strength determination, and hardness measurements (Rockwell, Vickers).
Performance & Engineering
The performance of a threaded bar under load is governed by several engineering principles. Tensile strength dictates the maximum stress the bar can withstand before fracturing under pulling force. Shear strength represents the maximum stress before failure under transverse force. Fatigue strength, however, is critical for applications involving cyclical loading; repeated stress cycles, even below the yield strength, can lead to fatigue cracking. The thread form (e.g., ISO metric, Unified National) influences stress concentration points, with sharper threads generally exhibiting lower fatigue life. Environmental resistance is paramount; exposure to corrosive environments (saline spray, chemical fumes) can significantly reduce the bar's load-bearing capacity. Corrosion initiates at surface defects and thread roots, leading to pitting and ultimately, failure. Preload, the initial tension applied to the bar during tightening, is a crucial parameter affecting joint stability and fatigue life. Insufficient preload can lead to loosening under vibration, while excessive preload can exceed the bar’s yield strength. Compliance requirements often dictate specific material grades and testing procedures. For example, applications in the aerospace industry necessitate stringent traceability and conformance to standards like AMS specifications. Finite element analysis (FEA) is frequently employed to model stress distributions and optimize bar geometry and material selection for specific load scenarios.
Technical Specifications
| Material Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (Rockwell C) |
|---|---|---|---|
| A2 Stainless Steel (304) | 500-700 | 205-275 | 20-25 |
| A4 Stainless Steel (316) | 620-800 | 240-310 | 25-32 |
| Grade 8.8 Carbon Steel | 800-1000 | 600-700 | 33-39 |
| Grade 10.9 Carbon Steel | 1000-1200 | 900-1100 | 37-45 |
| B8 Class A Alloy Steel | 800-900 | 650-750 | 30-37 |
| Inconel 625 | 930-1030 | 550-690 | 35-45 |
Failure Mode & Maintenance
Threaded bars are susceptible to several failure modes. Fatigue cracking, as previously mentioned, is common in dynamically loaded applications. Hydrogen embrittlement, particularly in high-strength steels, can lead to premature failure in corrosive environments. Thread stripping occurs when the shear stress exceeds the thread’s strength, leading to deformation or complete removal of threads. Corrosion, especially galvanic corrosion when dissimilar metals are in contact, weakens the material and reduces its load-bearing capacity. Overload, exceeding the bar’s tensile strength, results in immediate fracture. Creep, under sustained high temperatures and stress, can cause gradual deformation and eventual failure. Maintenance involves regular visual inspection for signs of corrosion, cracking, or deformation. Lubrication of threads is crucial to prevent galling and reduce stress concentration. Periodic torque checks ensure proper preload is maintained. In corrosive environments, protective coatings should be inspected and reapplied as necessary. For critical applications, non-destructive testing (NDT) methods, such as ultrasonic testing or magnetic particle inspection, can detect internal flaws and cracks before they lead to catastrophic failure. Detailed failure analysis, including metallurgical examination of fractured surfaces, is essential for identifying the root cause of failures and implementing preventative measures.
Industry FAQ
Q: What are the key differences between ISO metric and Unified National threads in threaded bars, and which is generally preferred for structural applications?
A: ISO metric threads utilize a 60-degree thread angle and metric dimensions, while Unified National threads use a 60-degree angle but employ inch dimensions. ISO metric is preferred globally for structural applications due to its standardization, simplicity, and widespread availability. Unified National threads are more common in North America and certain legacy systems. The choice also depends on compatibility with existing components and fasteners in a given assembly.
Q: How does the surface finish of a threaded bar impact its fatigue life, and what Ra values are typically considered acceptable for critical applications?
A: A rougher surface finish introduces stress concentrations, significantly reducing fatigue life. Lower Ra values (Roughness Average) indicate a smoother surface. For critical applications, an Ra value of 1.6 µm or less is generally considered acceptable. Polishing or specialized surface treatments can further reduce Ra and improve fatigue performance.
Q: What is the significance of material traceability for threaded bars used in aerospace or medical applications?
A: Material traceability is paramount in these industries. It ensures that each bar can be traced back to its original raw material source, manufacturing process, and quality control records. This is essential for verifying material properties, identifying potential defects, and complying with stringent regulatory requirements. Traceability often involves unique identification markings and comprehensive documentation.
Q: What are the potential drawbacks of using galvanized threaded bars in high-temperature applications?
A: Galvanizing (zinc coating) provides excellent corrosion resistance, but its protective layer degrades at elevated temperatures (typically above 200°C). At higher temperatures, the zinc can melt or oxidize, losing its protective properties and potentially leading to accelerated corrosion. For high-temperature applications, alternative coatings like ceramic coatings or stainless steel are more suitable.
Q: How does the choice of nut material affect the overall performance and longevity of a threaded bar assembly?
A: The nut material must be compatible with the threaded bar material to avoid galvanic corrosion. The nut's strength grade should also match or exceed the bar's strength grade to ensure optimal load transfer. Using a nut with a lower strength grade can lead to thread stripping or premature failure. Proper lubrication during assembly is also crucial to prevent galling and ensure smooth operation.
Conclusion
Threaded bars remain indispensable fasteners across diverse industries, their functionality rooted in robust material science and precise manufacturing. Selecting the correct grade, material, and surface treatment is vital to ensuring structural integrity and operational reliability. Understanding failure modes, implementing preventative maintenance protocols, and adhering to relevant industry standards are crucial for maximizing service life and mitigating risks.
Future advancements in threaded bar technology will likely focus on developing novel materials with enhanced corrosion resistance and fatigue strength, optimizing thread designs to reduce stress concentrations, and integrating smart sensors for real-time monitoring of preload and structural health. These innovations will further solidify the threaded bar’s position as a cornerstone of modern engineering and construction.
