Precision High-Strength Hex Bolts for Demanding Industrial Applications
In the world of industrial fastening, precision and reliability are non-negotiable. Our high-strength hex bolts are engineered to meet the rigorous demands of modern manufacturing, construction, and machinery assembly. As a cornerstone of structural integrity, understanding precise hex bolt dimensions is critical for ensuring optimal fit, performance, and safety in any application. This product line offers a comprehensive range of sizes and grades, manufactured to international standards, providing a dependable solution for professionals who cannot afford compromise.
1. Product Overview
Our hex bolts, also known as hex cap screws, are designed for high-stress applications requiring superior clamping force and shear strength. Featuring a hexagonal head for easy wrenching and a fully or partially threaded shank, they are the go-to fastener for assembling heavy-duty components. We prioritize exacting hex bolt dimensions and thread tolerances to guarantee seamless compatibility with standard nuts and pre-tapped holes, streamlining your assembly process and reducing the risk of cross-threading or joint failure.
2. Key Features
- Premium Material Construction: Manufactured from high-grade alloy steel, stainless steel (A2/A4), or other specified materials, ensuring excellent tensile strength and corrosion resistance.
- Precision Machining: Consistent and accurate hex bolt dimensions across all production batches, including head width, thread pitch, and shank length.
- Multiple Strength Grades: Available in common grades such as 8.8, 10.9, and 12.9 (metric) or Grade 5 and 8 (imperial), certified to meet ISO 898-1 and ASTM standards.
- Versatile Finishes: Options include plain, zinc-plated, hot-dip galvanized, and dichromate coatings for enhanced durability and environmental protection.
- Rigorous Quality Control: Each batch undergoes stringent testing for hardness, tensile strength, and dimensional accuracy.
3. Technical Specifications
The following table outlines standard specifications for our metric hex bolt product range. Custom hex bolt dimensions and specifications are available upon request for OEM projects.
| Nominal Diameter (d) | Pitch (mm) | Head Width (s) mm | Common Lengths (L) mm | Standard | Material / Grade |
|---|---|---|---|---|---|
| M6 | 1.0 | 10 | 10 - 100 | DIN 933 / ISO 4017 | Steel 8.8 |
| M8 | 1.25 | 13 | 15 - 150 | DIN 933 / ISO 4017 | Steel 10.9, A2-70 |
| M10 | 1.5 | 17 | 20 - 200 | DIN 933 / ISO 4017 | Steel 12.9, A4-80 |
| M12 | 1.75 | 19 | 25 - 250 | DIN 933 / ISO 4017 | Steel 10.9, A2-70 |
| M16 | 2.0 | 24 | 30 - 300 | DIN 933 / ISO 4017 | Steel 8.8, Hot-Dip Galv. |
| M20 | 2.5 | 30 | 40 - 400 | DIN 933 / ISO 4017 | Steel 10.9 |
Note: Dimensions conform to standard tolerances as per ISO 4759-1. Imperial (UNC/UNF) sizes are also available.
4. Application Scenarios
Our hex bolts are specified by engineers and procurement specialists across a diverse spectrum of industries where secure fastening is paramount:
- Heavy Machinery & Equipment: Assembly of frames, housings, and structural components in construction, agricultural, and mining machinery.
- Structural Steelwork: Connecting steel beams, brackets, and supports in building construction and bridge work.
- Automotive & Transportation: Used in chassis assembly, engine components, and truck/trailer building, where vibration resistance is critical.

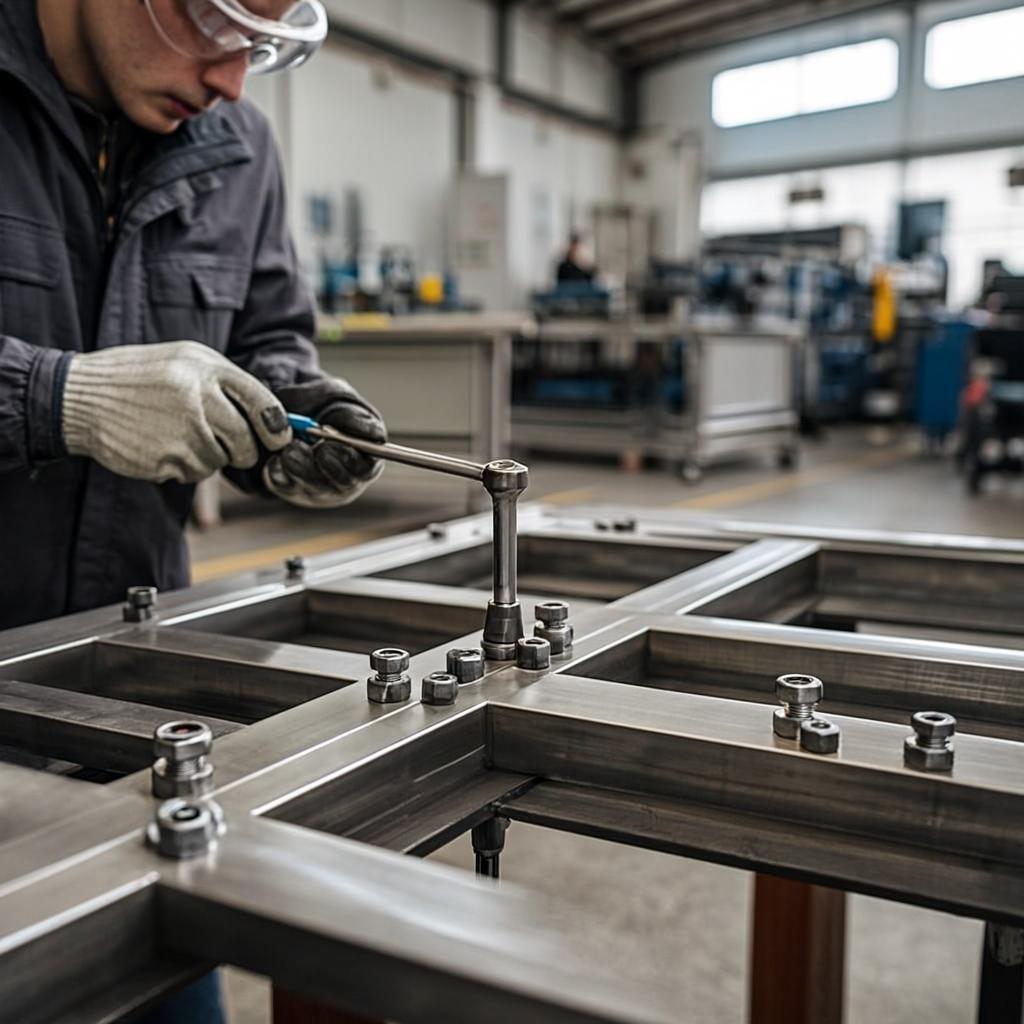

- Industrial Manufacturing: Securing heavy-duty fixtures, conveyor systems, presses, and robotic cells on factory floors.
- Energy & Infrastructure: Applications in wind turbine assembly, power generation equipment, and utility structures.
5. Advantages
- Enhanced Joint Integrity: Precise hex bolt dimensions and high-grade materials ensure uniform clamping force, preventing loosening under dynamic loads.
- Global Standard Compliance: Products are manufactured to DIN, ISO, ASTM, and other major international standards, facilitating global procurement and use.
- Reduced Assembly Time & Cost: Consistent quality and dimensions minimize installation issues, rework, and downtime on the production line.
- Superior Load Distribution: The hexagonal head design provides a large bearing surface, effectively distributing load and reducing the risk of material deformation.
- Long-Term Durability: Corrosion-resistant materials and finishes extend service life, even in harsh outdoor or chemical environments.
6. Why Choose Us
Selecting us as your hex bolt supplier means partnering with a dedicated expert in industrial fasteners. We combine deep technical knowledge with a customer-centric approach:
- Technical Expertise: Our team provides direct support on selecting the correct hex bolt dimensions, grade, and coating for your specific application.
- Flexible Supply Chain: We maintain a large inventory of standard sizes and offer efficient custom manufacturing for specialized requirements.
- Quality Assurance: Our commitment to quality is backed by mill test certificates, material traceability, and in-house laboratory testing.
- Global Logistics: We are experienced in packaging and shipping to international destinations, ensuring your order arrives on time and in perfect condition.
- B2B Focus: We understand the needs of industrial buyers, offering competitive volume pricing, reliable consistency, and professional documentation.
7. FAQ
Q: How do I specify the correct hex bolt dimensions for my project?
A: The key hex bolt dimensions to specify are the diameter (e.g., M12), thread pitch (e.g., 1.75mm), length (measured from under the head to the end of the bolt), and head width (wrench size). Always refer to engineering drawings or standards. Our technical team can assist with selection based on your load, material, and environmental requirements.
Q: What is the difference between a Grade 8.8 and a 10.9 hex bolt?
A: The grade indicates the bolt's tensile strength. A Grade 10.9 bolt has a higher minimum tensile strength (1040 MPa) and yield strength compared to an 8.8 (830 MPa). The choice depends on the required clamping force and safety factor of your application. Higher grades are used for more critical, high-stress connections.
Q: Can you provide hex bolts with non-standard dimensions or special coatings?
A: Absolutely. We specialize in custom manufacturing for OEM clients. This includes non-standard lengths, diameters, special thread forms, and proprietary coatings like Geomet or Dacromet. Contact us with your specifications for a tailored quote.
Q: What documentation do you provide with shipments?
A> For B2B clients, we provide all necessary commercial documents (invoice, packing list, certificate of origin). Upon request, we can supply material test certificates (MTCs), chemical composition reports, and mechanical property test reports to support your quality control and compliance processes.
Q: What are your minimum order quantities (MOQs)?
A: For standard items in our catalog, MOQs are typically one carton or pallet. For custom-manufactured bolts, MOQs are project-dependent but we strive to be flexible to accommodate both large-scale production runs and smaller prototype orders.
