High-Strength A325 Heavy Hex Bolts for Structural Steel Connections
In the demanding world of structural steel fabrication and heavy construction, the integrity of every connection is non-negotiable. Our range of A325 heavy hex bolts is engineered to meet the rigorous standards of ASTM A325, providing the reliable clamping force and shear strength required for critical load-bearing applications. These bolts are the industry standard for structural joints, offering a perfect balance of hardness, tensile strength, and durability for both temporary and permanent steel assemblies.
1. Product Overview

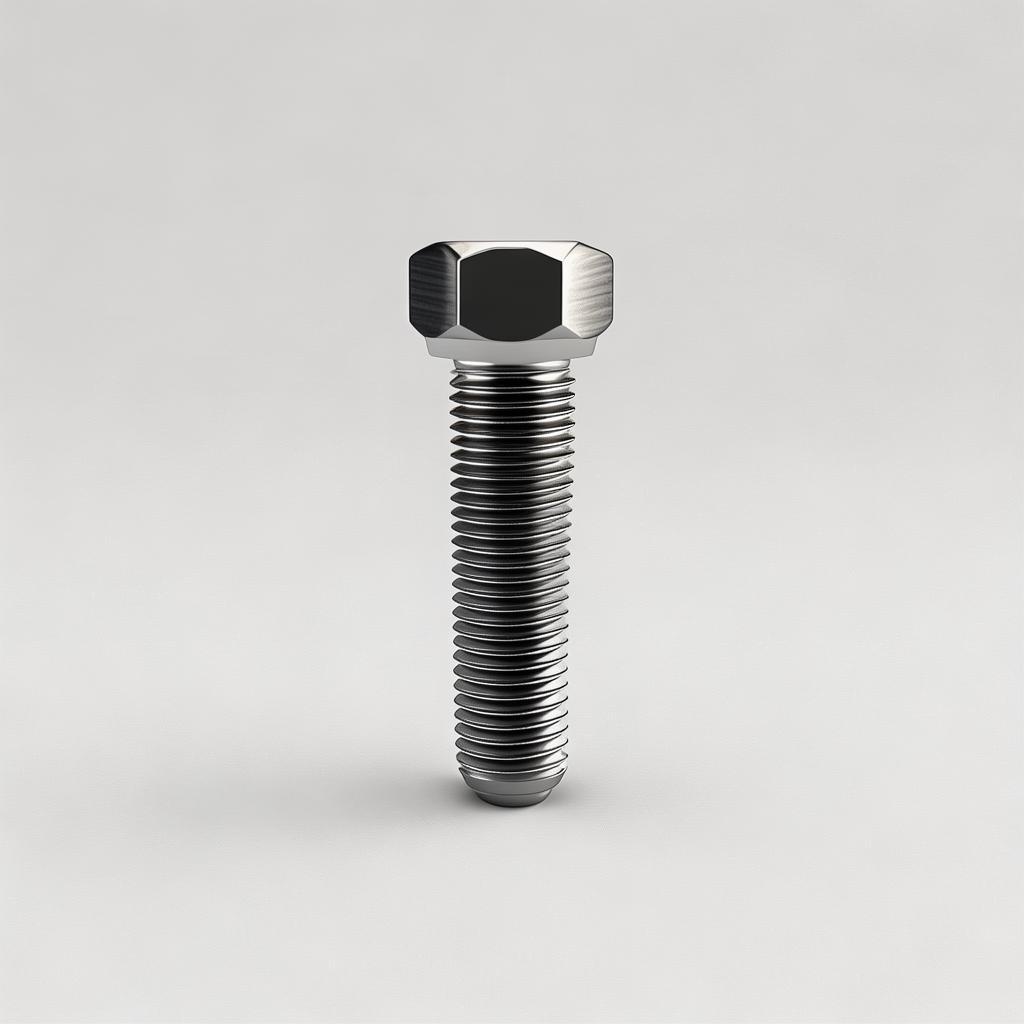

Our A325 heavy hex bolts are specifically designed for structural steel connections where high tensile strength is paramount. Unlike standard hex bolts, these fasteners feature a thicker, wider head that distributes clamping load more effectively, reducing the risk of indentation on steel surfaces. Manufactured from medium carbon steel and quenched and tempered to specification, they are available in both Type 1 (plain steel) and Type 3 (weathering steel) finishes. Each bolt is traceable and meets the mechanical property requirements for diameters ranging from 1/2" to 1-1/2". Whether you are assembling a bridge truss or a high-rise building frame, these bolts provide the predictable performance required by structural engineers.
2. Key Features
- Heavy Hex Head Design: Wider bearing surface area reduces stress on connected parts and prevents pull-through.
- Quenched and Tempered: Heat treatment ensures consistent hardness and ductility across the entire bolt body.
- Full Traceability: Each bolt is stamped with a manufacturer’s identification mark and grade designation (A325).
- Corrosion Resistance Options: Available in plain finish, hot-dip galvanized (ASTM F2329), or weathering steel for unpainted applications.
- Precision Threading: UNC threads (Class 2A) ensure smooth nut engagement and consistent preload.
- Compliance: Meets or exceeds ASTM A325, ASME B18.2.1, and SAE J429 Grade 5 equivalent standards.
3. Technical Specifications
| Specification | Details |
|---|---|
| Grade | A325 Type 1 (Carbon Steel) / Type 3 (Weathering) |
| Diameter Range | 1/2" to 1-1/2" (M12 to M36 metric equivalents) |
| Tensile Strength (Min) | 120,000 psi (for diameters up to 1") |
| Yield Strength (Min) | 92,000 psi |
| Hardness | Rockwell C 25 to 34 |
| Thread Pitch | UNC (Coarse) – Class 2A |
| Head Style | Heavy Hex (wider than standard hex) |
| Finish Options | Plain, Hot-Dip Galvanized, Zinc Plated |
| Certification | Mill Test Reports (MTR) available per lot |
4. Application Scenarios
These A325 heavy hex bolts are the preferred choice for structural engineers and fabricators working on projects that demand high preload and shear resistance. Common applications include:
- Steel Building Frames: Column splices, beam-to-column connections, and bracing systems.
- Bridge Construction: Truss connections, girder splices, and bearing stiffeners.
- Heavy Equipment Assembly: Crane rails, conveyor systems, and mining structures.
- Transmission Towers: Lattice tower leg and cross-arm connections.
- Industrial Platforms: Mezzanines, walkways, and heavy machinery foundations.
- Wind Turbine Towers: Flange connections requiring high fatigue resistance.
5. Advantages
- Superior Clamping Force: The heavy hex design allows for higher torque application without head deformation, ensuring secure joints under dynamic loads.
- Reduced Installation Time: Consistent thread geometry allows for faster nut threading and fewer rejections during inspection.
- Long-Term Reliability: Quenched and tempered steel resists fatigue cracking, even under cyclic loading conditions.
- Versatility: Compatible with ASTM A194 heavy hex nuts and flat washers for complete assembly solutions.
- Global Compliance: Our bolts meet the dimensional standards of both imperial (ASME) and metric (ISO) systems, simplifying international procurement.
6. Why Choose Us
We are not just a supplier; we are a partner in your structural integrity. Every batch of A325 heavy hex bolts we ship undergoes rigorous third-party testing to verify mechanical properties and dimensional accuracy. Our inventory includes common diameters and lengths, ensuring fast turnaround for urgent projects. We offer:
- Lot Control: Complete traceability from raw material to finished product.
- Custom Packaging: Bulk, kegs, or labeled boxes to match your inventory system.
- Technical Support: Our engineers can assist with torque specifications and installation guidelines.
- Competitive Pricing: Direct mill relationships allow us to offer cost-effective solutions without compromising quality.
When you choose us, you eliminate the risk of bolt failure. We stand behind our product with a full warranty against manufacturing defects.
7. FAQ
Q: What is the difference between A325 and A490 heavy hex bolts?
A: A325 bolts are made from medium carbon steel and are quenched and tempered, offering a tensile strength of 120,000 psi. A490 bolts are made from alloy steel and have a higher tensile strength (150,000 psi min). A325 is more commonly used for general structural applications, while A490 is reserved for higher-strength connections where weight reduction is critical.
Q: Can A325 heavy hex bolts be used in galvanized applications?
Yes. Hot-dip galvanizing (per ASTM F2329) is a standard finish for A325 bolts used in outdoor or corrosive environments. However, note that galvanizing reduces the thread allowance slightly, so we recommend using tapped holes or nuts with an oversize tap (Class 2B) to ensure smooth assembly.
Q: What torque should I use for A325 bolts?
Torque values depend on bolt diameter, thread condition, and lubrication. For plain finish bolts, a general guideline is 50-70% of the bolt's yield strength. For exact values, refer to the AISC 14th Edition Manual or contact our technical team for a torque table specific to your application.
Q: Are these bolts suitable for slip-critical connections?
Yes, when installed with a hardened washer and proper preload, A325 heavy hex bolts are commonly used in slip-critical connections. For such applications, we recommend using the turn-of-nut method or a calibrated torque wrench to achieve the required clamping force.
Q: Do you provide mill certificates?
Absolutely. We provide MTRs (Mill Test Reports) for each production lot, including chemical analysis, tensile test results, and hardness readings. These are available upon request at no extra charge.
Contact us today for a quote on your next structural project. Our team is ready to supply the A325 heavy hex bolts you need, delivered to your job site on time and to spec.
