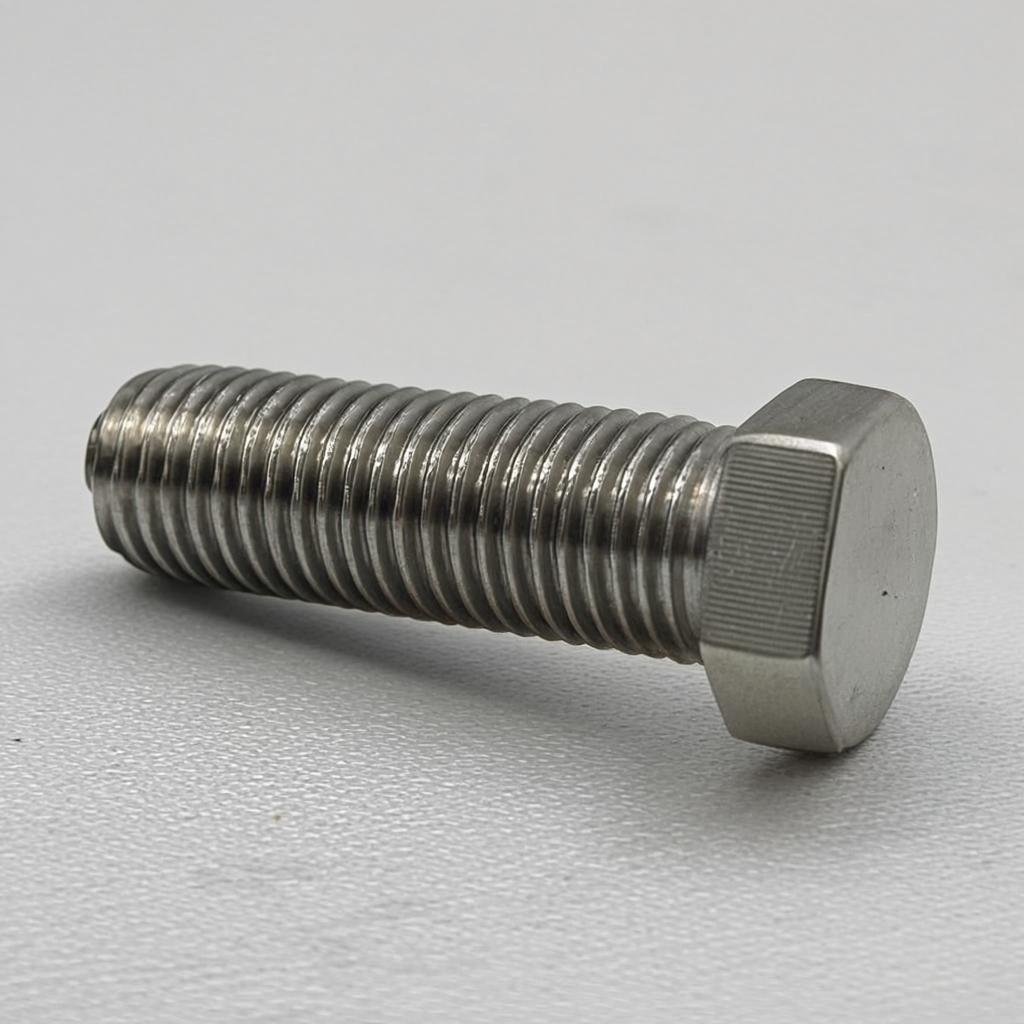

Precision 3mm Hex Head Bolts for Demanding Industrial Applications
In the intricate world of precision assembly and compact machinery, the reliability of every component is paramount. Our 3mm hex head bolt represents a cornerstone of miniature fastening solutions, engineered for applications where space is limited but performance cannot be compromised. Designed to meet rigorous international standards, these bolts offer a superior blend of strength, durability, and ease of installation, making them an essential component for OEMs and MRO professionals across electronics, automotive, and precision engineering sectors.
Product Overview
Our 3mm hex head bolt is a meticulously crafted metric fastener designed for high-strength, reliable connections in compact assemblies. Featuring a standard hexagonal head for tool engagement with common wrenches and sockets, this bolt provides excellent torque transfer and resistance to cam-out. Available in a variety of materials, grades, and finishes, it is tailored to withstand diverse environmental conditions, from standard indoor use to corrosive or high-stress environments. This product is a fundamental solution for designers and engineers seeking a dependable, standardized fastening method for thin-section or densely packed components.
Key Features
- Precision Engineering: Manufactured to tight tolerances (e.g., ISO 4762 / DIN 933/931 standards) ensuring consistent thread fit and reliable performance.
- High-Strength Materials: Available in Grade 8.8, 10.9, and 12.9 steel, as well as A2/A4 stainless steel, providing a range of tensile strength and corrosion resistance options.
- Optimized Head Design: The hex head is precisely formed for full-contact tool engagement, minimizing rounding and stripping during installation.
- Versatile Finishes: Options include plain, zinc-plated, hot-dip galvanized, and dichromate finishes for both corrosion protection and aesthetic requirements.
- Full Thread & Partial Thread: Offered in fully threaded (set screw) and partially threaded (bolt) versions to suit specific clamping and alignment needs.
Technical Specifications
| Parameter | Specification | Details / Standards |
|---|---|---|
| Thread Diameter (d) | 3 mm | Metric Coarse (M3), standard pitch 0.5mm |
| Head Style | Hexagon Head | ISO 4762 (Hex Socket Head Cap) / DIN 933 (Hex Head Bolt) |
| Common Lengths (L) | 5mm - 50mm | Custom lengths available upon request |
| Strength Grades | 8.8, 10.9, 12.9, A2-70, A4-80 | ISO 898-1 (Carbon Steel) / ISO 3506-1 (Stainless Steel) |
| Drive Size | 2.5 mm (Allen Key) | For socket head variants; Standard hex head uses 5.5mm wrench. |
| Standard Finish | Zinc Plated, Clear Chromated | Provides base corrosion resistance. Other finishes available. |
| Tensile Strength (Grade 8.8) | ≥ 800 MPa | Minimum ultimate tensile strength |
Application Scenarios
The versatility of the 3mm hex head bolt makes it suitable for a vast array of industries. Its small size and robust construction are critical in applications requiring precision and reliability.
- Electronics & PCB Assembly: Securing components, heat sinks, and brackets within servers, communication devices, and control panels.
- Automotive Sub-Assemblies: Fastening sensors, interior trim, electrical housings, and compact mechanisms in vehicles.
- Precision Machinery & Robotics: Used in the assembly of gears, guides, actuators, and frames in robotic arms and CNC equipment.
- Medical Device Manufacturing: Employed in non-critical enclosures and supports for diagnostic equipment, where cleanliness and reliability are key.
- Consumer Appliances & IoT Devices: Fastening internal chassis and components in cameras, drones, smart home devices, and small appliances.
Advantages
Choosing our 3mm hex head bolts delivers tangible benefits to your production line and final product integrity.
- Enhanced Assembly Efficiency: The standard hex drive allows for quick installation with common tools, reducing assembly time and labor costs.
- Superior Clamping Force: High-grade materials ensure the bolt maintains clamp load under vibration and dynamic stresses, preventing joint failure.
- Space-Saving Design: The low-profile hex head provides a strong fastening point without requiring excessive clearance, ideal for compact designs.
- Consistent Quality & Traceability: Every batch is produced under strict quality control protocols, with material certifications available for critical applications.
- Global Compliance: Manufactured to recognized ISO, DIN, and ANSI standards, ensuring compatibility and acceptance in international markets.
Why Choose Us
As a specialist manufacturer and supplier in the industrial fastener sector, we distinguish ourselves through commitment and capability.
- Deep Technical Expertise: Our team provides not just products, but engineering support to help select the optimal 3mm hex head bolt specification for your application.
- Flexible Manufacturing & Supply: We support both high-volume OEM contracts and smaller MRO orders with reliable JIT delivery and customizable packaging.
- Rigorous Quality Assurance: From raw material inspection to final dimensional and mechanical testing, we ensure every bolt meets its specified performance criteria.
- Competitive Global Logistics: We have established partnerships with leading freight forwarders to ensure cost-effective and timely delivery to your facility, anywhere in the world.
- Long-Term Partnership Focus: We aim to be your strategic fastener partner, offering consistent quality, competitive pricing, and responsive service to support your business growth.
Frequently Asked Questions (FAQ)
Q1: What is the difference between a 3mm hex head bolt and a 3mm socket head cap screw?
A: The primary difference is the drive style and head profile. A hex head bolt (often called a hex cap screw) has an external hexagonal head driven by a wrench. A socket head cap screw has a cylindrical head with an internal hexagonal (Allen) drive. Hex head bolts often require more side clearance but can handle higher torque. Socket heads offer a lower profile and are used where space above the head is limited.
Q2: Can you provide 3mm hex head bolts with corrosion-resistant coatings?
A: Absolutely. Beyond standard zinc plating, we offer a range of coatings including geomet (zinc-flake), hot-dip galvanizing for severe environments, and dacromet. For stainless steel bolts (A2/A4), the material itself provides excellent corrosion resistance.
Q3: What wrench size is required for a standard M3 hex head bolt?
A: A standard M3 hex head bolt typically requires a 5.5mm wrench or socket. For our M3 socket head cap screws, a 2.5mm Allen key (hex key) is standard. Always refer to the specific product datasheet for accurate drive information.
Q4: Do you offer custom markings or packaging for OEM clients?
A: Yes, we frequently work with OEM clients to provide custom head markings for grade identification and traceability. We also offer tailored packaging solutions, including bulk boxes, labeled poly bags, or custom kitting to integrate seamlessly with your assembly process.
Q5: How do I select the correct strength grade for my application?
A: Selection depends on the required clamp load, presence of vibration, and environmental factors. Grade 8.8 is a good general-purpose choice. Grade 10.9/12.9 are for high-strength, high-stress applications. A2-70/A4-80 stainless steel is chosen for corrosion resistance, with A4 (316 stainless) being superior for chemical/marine environments. Our technical team can assist with specific calculations.
