Premium 3 8 16 x 1 1 4 Hex Head Bolts – Industrial Grade Fasteners for High-Stress Applications
1. Product Overview

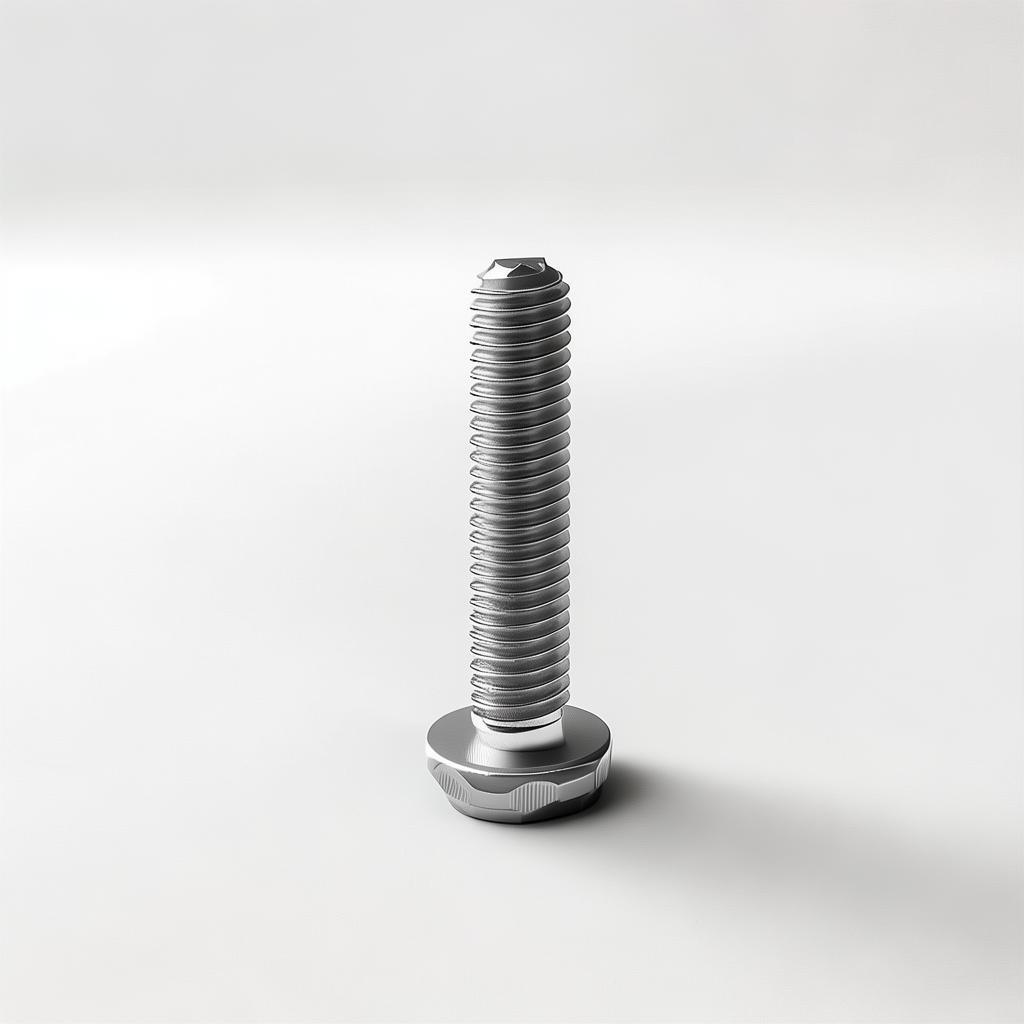

In the world of heavy machinery, structural assembly, and mechanical engineering, the integrity of a connection often depends on the quality of the fastener. Our 3 8 16 x 1 1 4 hex head bolts are engineered to meet the rigorous demands of industrial environments. This specific size—referring to a 3/8-inch diameter, 16 threads per inch (UNC coarse thread), and a 1-1/4-inch length—represents a standard yet critical component in countless assemblies.
Manufactured from high-strength alloy steel and available in various grades (including Grade 5 and Grade 8), these hex head bolts provide superior clamping force and resistance to shear stress. Whether you are securing flanges, mounting equipment, or fabricating steel structures, this bolt offers the reliability required for long-term performance. Each bolt features a fully threaded shank for maximum engagement and a precision-formed hex head for optimal torque transfer.
Our inventory ensures consistent dimensional accuracy, meeting ASTM and SAE specifications. For procurement professionals and maintenance teams, these bolts offer a direct replacement or OEM-grade solution for critical fastening tasks.
2. Key Features
- Precision Threading: UNC 3/8-16 coarse threads provide excellent grip and quick assembly, reducing the risk of cross-threading in field applications.
- High Tensile Strength: Available in Grade 5 (120,000 PSI) and Grade 8 (150,000 PSI) options, our 3 8 16 x 1 1 4 hex head bolts withstand extreme loads.
- Corrosion Resistance: Standard bright zinc plating offers moderate corrosion protection. For harsh environments, hot-dip galvanized or stainless steel variants are available.
- Uniform Head Geometry: The hex head is forged and machined to tight tolerances (typically across-flats tolerance of ±0.010 inches), ensuring a secure fit with standard sockets and wrenches.
- Full Thread Coverage: The 1-1/4 inch length is fully threaded, allowing for versatile clamping depth and use with various nut and washer combinations.
- RoHS Compliance: All coatings and base materials comply with international environmental standards.
3. Technical Specifications
| Specification | Detail |
|---|---|
| Nominal Diameter | 3/8 inch (0.375 in / 9.525 mm) |
| Threads Per Inch (TPI) | 16 (UNC Coarse) |
| Length (Under Head) | 1-1/4 inch (1.250 in / 31.75 mm) |
| Head Type | Hexagon (Hex) |
| Head Width Across Flats | 9/16 inch (0.5625 in) |
| Head Height | 0.268 – 0.302 inch |
| Thread Class | 2A (External) |
| Material Options | Carbon Steel (SAE J429), Alloy Steel, 304/316 Stainless Steel |
| Grade Options | Grade 2 (low carbon), Grade 5 (medium carbon, quenched & tempered), Grade 8 (alloy steel) |
| Finish | Plain, Zinc Plated (Yellow/Blue), Hot-Dip Galvanized, Black Oxide |
| Hardness (Grade 5) | HRC 25-34 |
| Proof Load (Grade 8) | 120,000 PSI |
| Packaging | Bulk (25 lb boxes), bags (100 pcs), or custom retail clamshells |
4. Application Scenarios
The 3 8 16 x 1 1 4 hex head bolts are versatile fasteners used across multiple industries. Their moderate length and robust thread profile make them ideal for:
- Heavy Equipment Assembly: Securing hydraulic pump mounts, engine brackets, and chassis components in construction and agricultural machinery.
- Structural Steel Connections: Bolting beam-to-beam or beam-to-column connections in warehouses and industrial mezzanines (often paired with hardened washers and lock nuts).
- Automotive & Trucking: Attaching suspension components, leaf spring brackets, and engine block accessories where Grade 5 or Grade 8 strength is required.
- Plumbing & Pipe Supports: Fastening pipe clamps and hangers to overhead beams or wall channels in commercial buildings.
- Conveyor Systems: Mounting drive sprockets, idler rollers, and frame sections in material handling equipment.
- DIY & Fabrication: General workshop jigs, fixtures, and custom metal projects requiring a robust, reusable fastener.
5. Advantages
- Cost-Effective Standardization: This bolt size is a global standard. Bulk procurement reduces per-unit costs without compromising quality.
- Superior Torque Retention: The coarse 16 TPI thread resists vibration loosening better than fine threads, reducing maintenance frequency.
- Easy Installation: The 9/16-inch hex head size is compatible with common sockets (3/8" drive or 1/2" drive), speeding up assembly lines.
- Material Traceability: Each batch of 3 8 16 x 1 1 4 hex head bolts comes with mill certificates and heat lot traceability for quality assurance.
- Customization: We offer custom finishes (e.g., Xylan, Dacromet) and drive types (e.g., flange head, serrated flange) for specialized OEM requirements.
6. Why Choose Us
With over 15 years of experience in industrial fastener supply, we have established a reputation for precision and reliability. Our 3 8 16 x 1 1 4 hex head bolts are sourced from ISO 9001:2015 certified mills and undergo rigorous third-party testing for dimensional accuracy, hardness, and tensile strength.
We understand that downtime costs money. That is why we maintain a deep inventory of this popular size, ensuring 24-48 hour shipping for standard orders. Our logistics team handles international shipping with proper export documentation, including COO, packing lists, and commercial invoices.
Furthermore, we offer a no-questions-asked replacement policy for any defective bolts. Whether you need 500 pieces for a maintenance run or a 50,000-piece container load, our sales engineers can help you select the correct grade and finish for your specific environment.
7. FAQ
Q: What is the difference between Grade 5 and Grade 8 for these bolts?
A: Grade 5 has a tensile strength of 120,000 PSI, suitable for most automotive and structural applications. Grade 8 has a tensile strength of 150,000 PSI and is recommended for critical connections like heavy equipment suspension or pressure vessel flanges. Grade 8 bolts are also more brittle and should not be used where high impact or shock loading is expected without proper engineering review.
Q: Can I use these bolts outdoors?
A: Yes, but the finish determines the lifespan. Standard zinc plating is suitable for dry indoor environments. For outdoor or marine use, we recommend hot-dip galvanized or 316 stainless steel 3 8 16 x 1 1 4 hex head bolts to prevent rust.
Q: What nut size fits this bolt?
A: A standard 3/8-16 UNC hex nut is required. The wrench size for the nut is typically 9/16 inch (same as the bolt head). Always use a hardened washer under the nut and bolt head to prevent galling when tightening to high torque.
Q: What is the recommended torque for these bolts?
A: Torque depends on the grade and lubrication. For dry Grade 5 bolts, typically 30-35 ft-lbs. For Grade 8, 40-45 ft-lbs. Always consult a torque chart specific to your application and use a calibrated torque wrench for critical joints.
Q: Do you offer mixed-grade shipping?
A: Yes. We can combine Grade 5 and Grade 8 bolts in the same shipment. However, they must be clearly marked and packaged separately to avoid mix-ups on site.
Q: What is the minimum order quantity (MOQ)?
A: For retail packaging, MOQ is 100 pieces. For bulk industrial orders, MOQ is 1,000 pieces. We offer tiered pricing for large volumes.
For technical data sheets or a custom quote, please contact our sales team. We are ready to support your next project with premium 3 8 16 x 1 1 4 hex head bolts.
